Double Garage 001 Building Plans - 24 x 24 - Digital Plans

PROFESSIONAL CONSTRUCTION BLUEPRINTS 24’ WIDE X 28’ DEEP TWO CAR GARAGE WITH 9FT SIDE WALLS This classic detached freestanding garage is 24’ wide x 24’ deep with 9’ side walls and a 4-12 pitch roof features a...

PROFESSIONAL CONSTRUCTION BLUEPRINTS

24’ WIDE X 24’ DEEP DOUBLE GARAGE WITH 9FT SIDE WALLS

These garage building plans feature a classic, detached freestanding garage that is 24’ wide x 24’ deep with 9’ side walls.  The roof has a 4-12 pitch.  This garage features a 16’ x 8’ garage door on the front which opens to a completely open garage floor.

A side walk door provides easy access and four large windows, two on each side wall provide natural light.

REAL CONSTRUCTION DRAWINGS

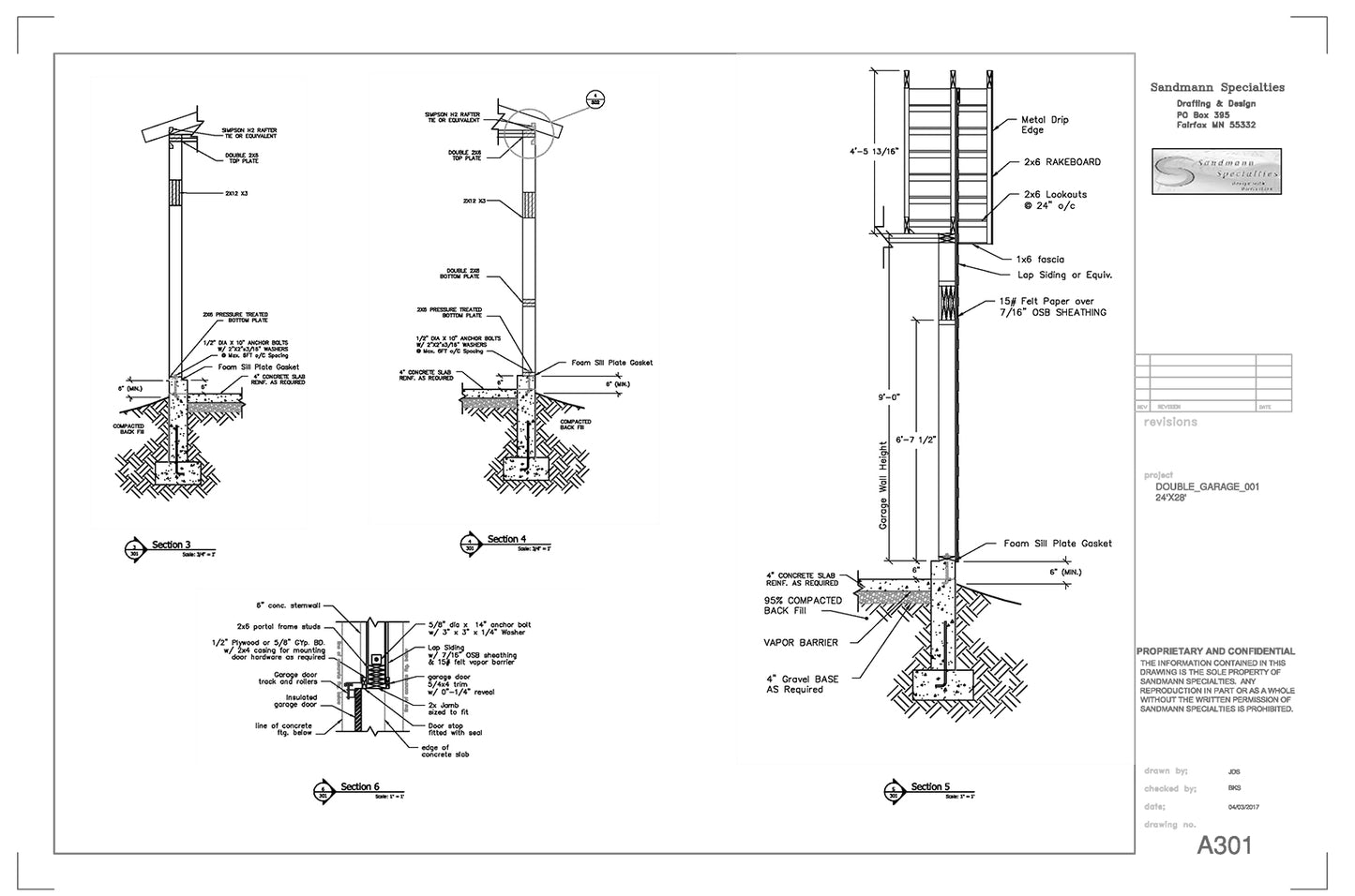

These garage building plans include ten pages of Professionally Designed construction drawings. They should be printed on D size engineering format paper (24”x 36”).  Plans include a foundation plan, floor plan, elevations, wall framing details, roof details, complete section view, detail views, suggested electrical layout.  Also a complete materials list and door and window schedule.  And finally, a site plan for permitting with blank spaces for measurements to the property lines to be filled in by end user.  These plans were created by Sandmann Specialties Drafting & Design and are permit ready (most states).

We do recommend that our published design be evaluated by the local building officials before construction.  This is to verify that it complies with all local codes. Local building requirements will vary in different parts of the country.

Please see our other listings for other sizes and projects.  If you don’t see what you are looking for, please let us know and we will do our best to help find exactly what you need.

Thank you
