Sandmann Specialties

Double Garage Building Plans 001 - 24 x 28

Regular price $34.99 USD
Regular price Sale price $34.99 USD
Sale Sold out
Shipping calculated at checkout.
Format

PROFESSIONAL CONSTRUCTION BLUEPRINTS 24’ WIDE X 28’ DEEP TWO CAR GARAGE WITH 9FT SIDE WALLS This classic detached freestanding garage is 24’ wide x 28’ deep with 9’ side walls and a 4-12 pitch roof features a...


--

PROFESSIONAL CONSTRUCTION BLUEPRINTS

24’ WIDE X 28’ DEEP TWO CAR GARAGE WITH 9FT SIDE WALLS

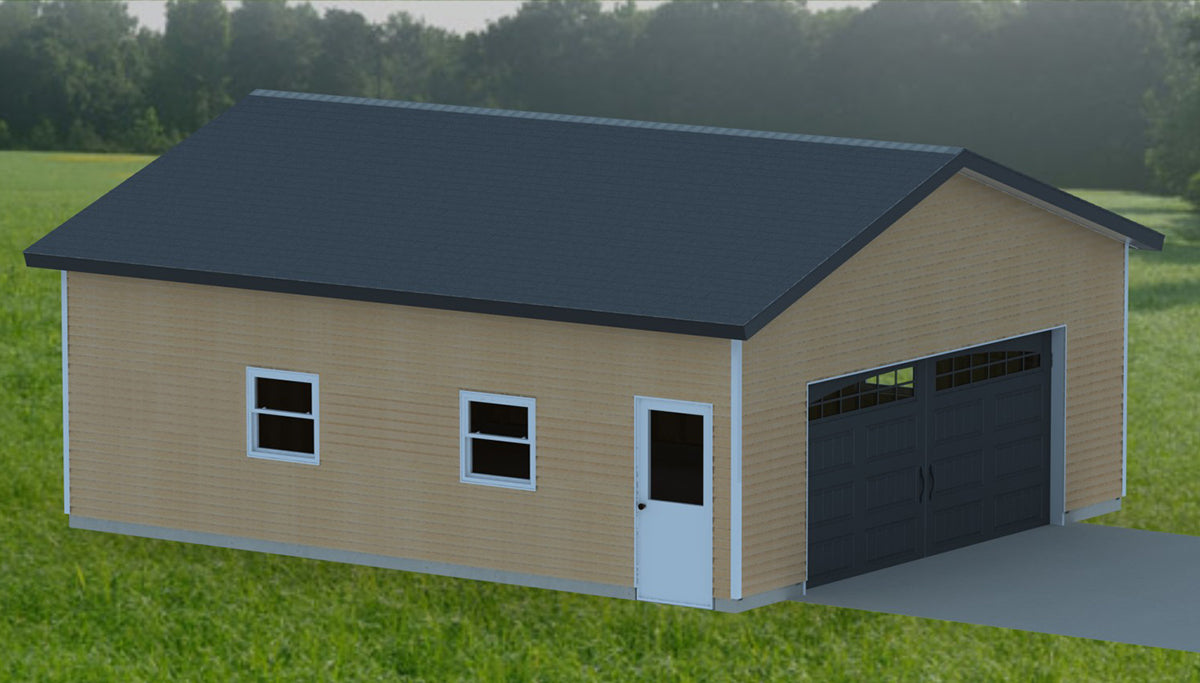

This classic detached freestanding garage is 24’ wide x 28’ deep with 9’ side walls and a 4-12 pitch roof.  It features a 16’ x 8’ garage door on the front which opens to a completely open garage floor.

A side walk door provides easy access and four large windows, two on each side wall provide natural light.



REAL CONSTRUCTION DRAWINGS

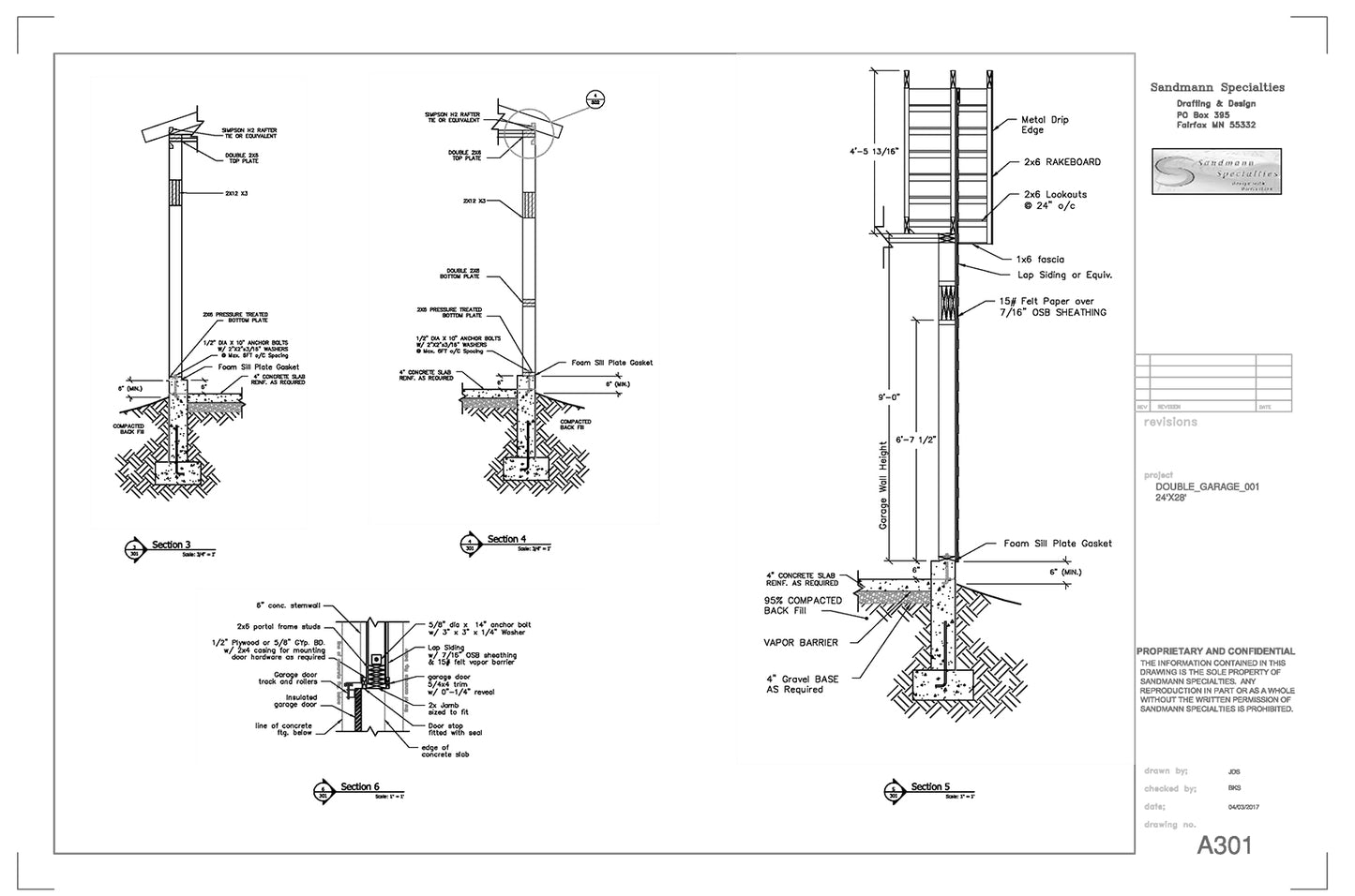

This sale includes ten pages of Professionally Designed construction drawings on D size engineering format paper (24”x 36”).  Plans include a foundation plan, floor plan, elevations, wall framing details, roof details, complete section view, detail views, suggested electrical layout.  As well as a complete materials list and door and window schedule.  And a site plan for permitting with blank spaces for measurements to the property lines to be filled in by end user.  These plans were created by Sandmann Specialties Drafting & Design and are permit ready (most states).



All of our plans were designed to comply with the International Building Code at the time they were designed.  However, we do recommend that our published design be evaluated by the local building officials before construction to verify that it complies with all local codes.  Local building requirements will vary in different parts of the country.





Please see our other listings for other sizes and projects.  If you can't find what you are looking for please let us know and we will do our best to help you find exactly what you need.



Thank you
